Handlebar Riser 80-100mm | Tested Mountain Bike Stem

How a Handlebar Riser Changes Your Riding Position

A handlebar riser lifts your bars closer to your body without changing your frame size or wheelbase. This shifts weight back slightly and opens up your torso angle, which matters most on climbs where you’re fighting gravity and on technical sections where you need better control. The difference between an 80mm and 100mm lift is noticeable—riders who spend hours in the saddle feel it immediately.

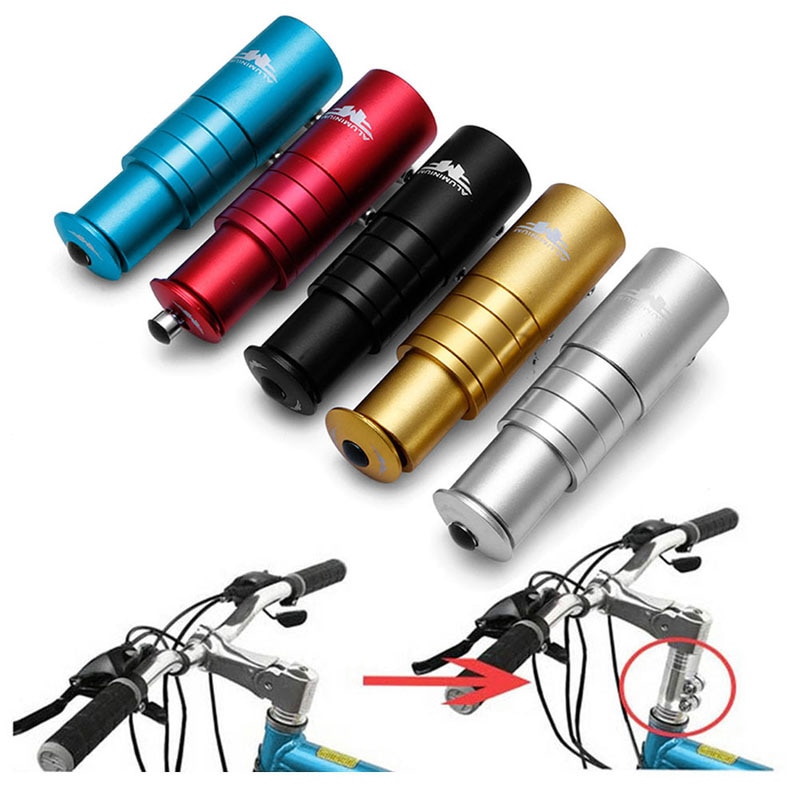

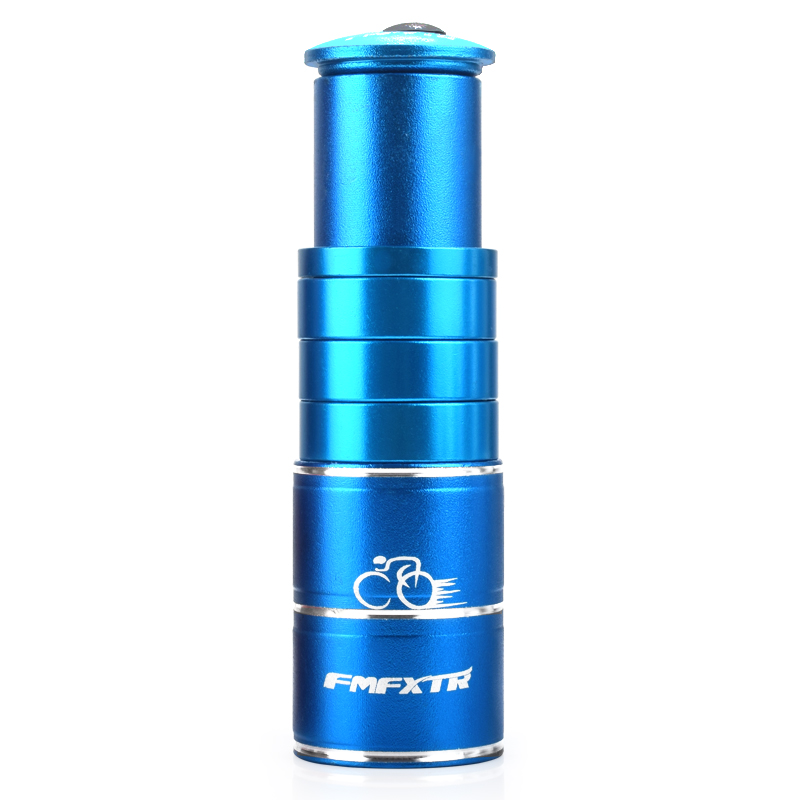

Three Generations of Aluminum Alloy Bar Height Increasers

This product line offers three distinct options, each built from high-strength aluminum alloy to handle the leverage forces that pass through your bars during riding.

• First Generation: 80mm height increase, 123mm length, fits 28.6mm inner diameter stems. Available in black, red, gold, silver, and blue.
• Second Generation: 80mm height increase, 123mm length, fits 28.6mm inner diameter stems. Available in black, red, gold, silver, and blue.
• Third Generation: 100mm height increase, 138mm length, fits 28.6mm inner diameter stems. Available in black, red, and blue.

The third generation’s longer 100mm lift suits riders with longer reach requirements or those who need a more aggressive upright posture. The first and second generations provide moderate lift for riders making smaller adjustments to their geometry.

Why Stem Extenders Work for Climbing and Technical Terrain

When you’re ascending steep grades, a bar height increaser moves your weight back over the rear wheel, improving traction and reducing the tendency to wheelie. On technical descents, the extra height gives you room to move your body weight behind the saddle without hitting the bars. Riders often notice improved confidence in rocky or rooty sections because they have more clearance to shift their upper body.

The aluminum construction keeps weight low—these aren’t heavy spacers that bog down your bike’s handling characteristics. The 28.6mm bore fits most modern mountain bike stems on hardtails and full suspension frames built in the last 10 years.

Real-World Riding: How Cyclists Use Stem Raisers

A trail rider climbs a steep rocky slope where the front wheel keeps lifting. Installing a 100mm bar height increaser shifts their weight enough that they can stay seated longer without fighting for traction. On the descent back down, that extra height means they can move further back in the saddle without their knees hitting the bars, giving them better control over technical terrain. The aluminum raiser adds roughly the equivalent weight of a few ounces to the bike while improving confidence on both climbs and descents.

Who Should Buy This Handlebar Riser

Ideal For:

• ✔ Mountain bikers with back or wrist pain from a forward-leaning position who need ergonomic adjustment
• ✔ Riders on hardtails navigating steep terrain who want better weight distribution on climbs
• ✔ Cyclists switching from road bikes to trail bikes and needing a more upright fit
• ✔ Riders with longer torsos or arms who need extra reach adjustment between frame sizes

Not Ideal For:

• ✘ XC racers or downhill specialists where aerodynamics and aggressive positioning are priorities
• ✘ Bikes with non-standard 25.4mm or 31.8mm stem bores that don’t match the 28.6mm spec
• ✘ Riders looking for a complete handlebar solution rather than a height-only adjustment

What to Check Before Ordering a Bar Height Increaser

Measure Your Stem’s Inner Diameter

These raisers fit 28.6mm inner diameter stems. Measure or verify your current stem diameter before ordering. Most hardtail and mid-range full suspension bikes use 28.6mm stems, but some older models and specialty bikes may vary. Check your bike’s spec sheet or measure the bore where your bars insert into the stem.

Common Installation Mistakes

Don’t over-tighten the clamp bolts. Hand-tight plus a quarter turn with an Allen wrench is enough to hold position without cracking the aluminum or damaging the stem walls. Many riders make the mistake of cranking bolts excessively hard, which can bow the stem and cause creaking. Also, ensure your bar diameter (usually 31.8mm) still has adequate clamp surface above the riser—some bikes have limited stem height that may not accommodate the third generation’s 138mm length without interference.

Maintenance Tips

Keep the bolts snug but not over-torqued. After your first ride, re-check bolt tension as the materials settle. Every few months, ensure nothing has shifted. If you notice creaking, loosen the bolts slightly, apply a small amount of carbon assembly paste to the inside surfaces, and re-tighten. This prevents slip and reduces noise without over-clamping.

Storage Tips

If you’re removing the riser, store it in a dry place away from salt or moisture. Aluminum resists corrosion well, but salt spray or prolonged exposure to water can cause oxidation over time. A simple plastic bag in a cool garage works fine for off-season storage.

Safety Notes

After installation, test your bike on smooth terrain first. Verify that the handlebar position change doesn’t interfere with your reach to the brake levers, shifters, or dropper post lever. A sudden geometry change can catch you off-guard on steep sections if you haven’t accustomed yourself to the new hand position. Also ensure your front wheel clearance—with bars raised, some riders gain extra clearance on short stems, but verify this doesn’t change your bike’s handling in ways you don’t expect.
